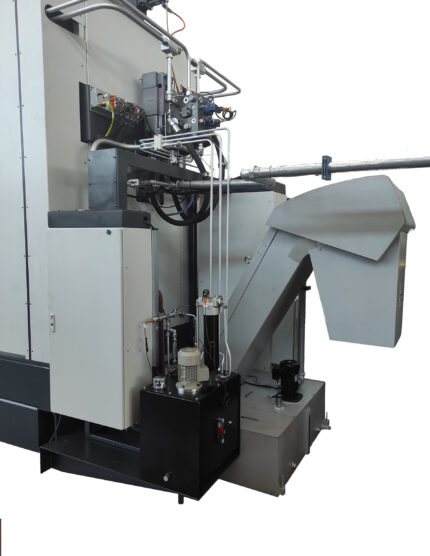

The peculiarity of the machine lies in the innovative hydraulic transmission system that allowing movements with high speeds and high effort, uses a small amount of hydraulic oil. All this translates into cost-effectiveness of energy management and maintenance of the machinery.

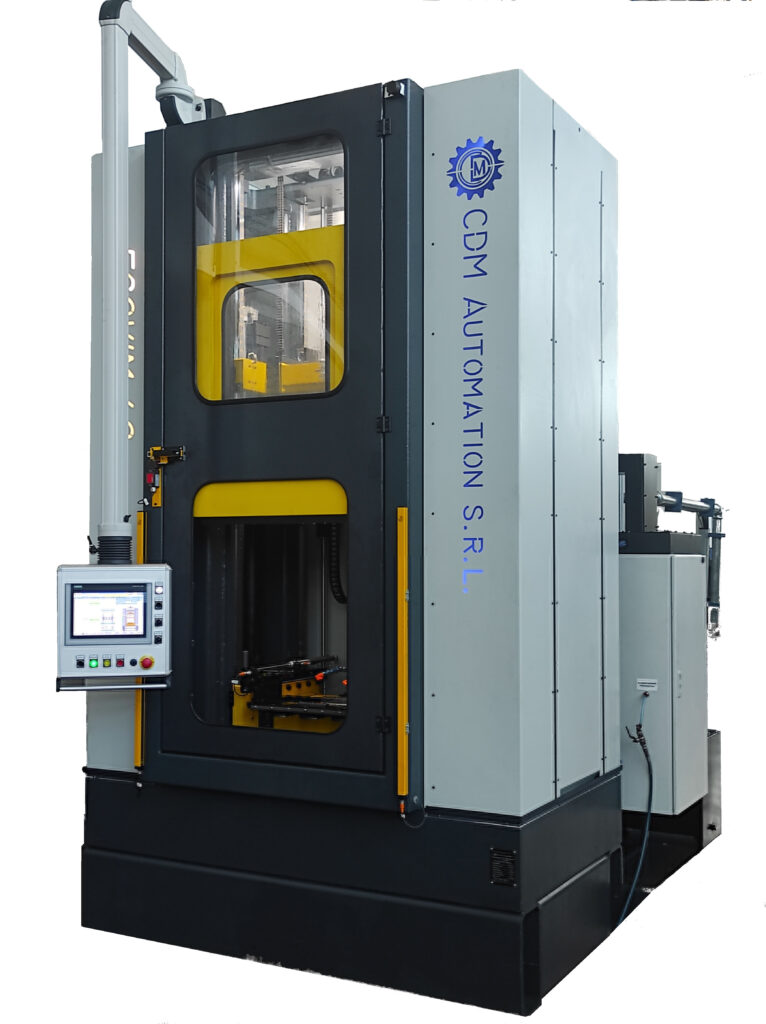

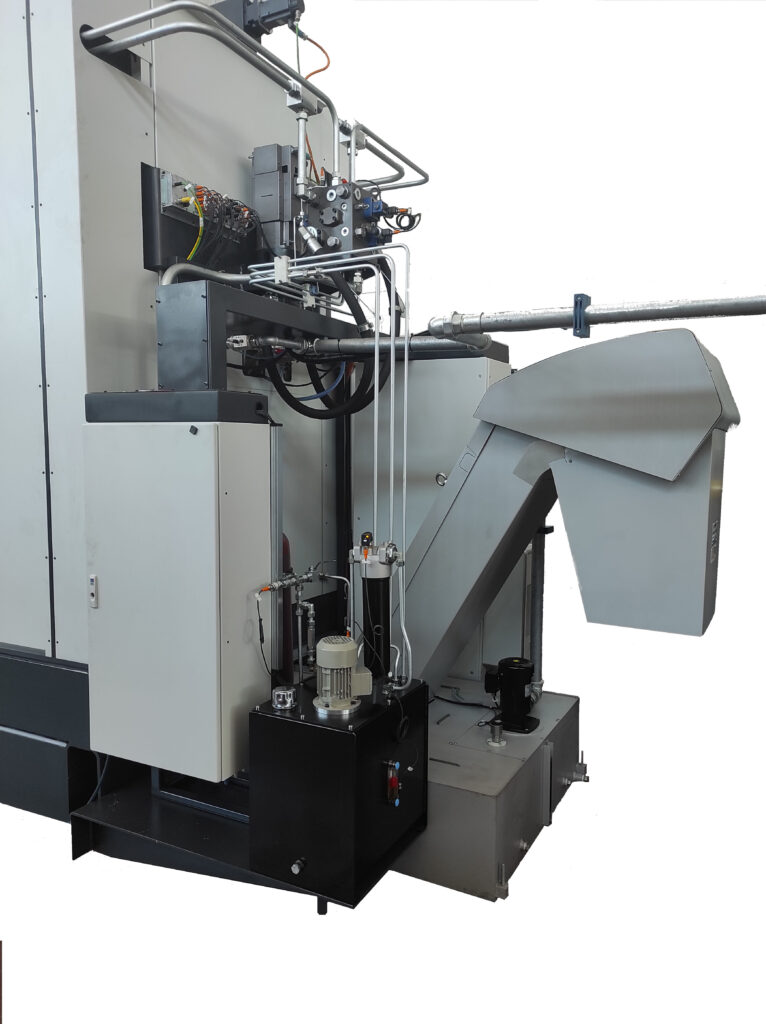

MODEL ELECTRO HYDRAULIC ECOVIM I-4Q
MACHINE ADVANTAGES:
- HIGH PRODUCTIVITY WITH REDUCED MAINTENANCE
- MACHINE EQUIPMENT SPEED AND AUTOMATIC BROACH CHANGE

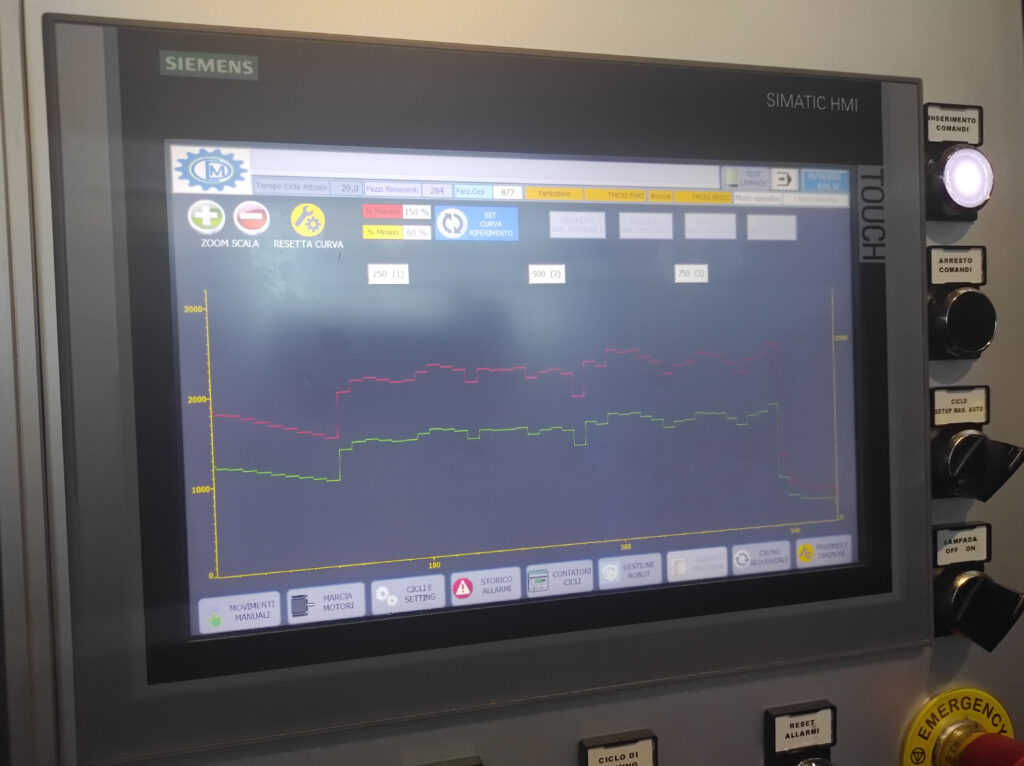

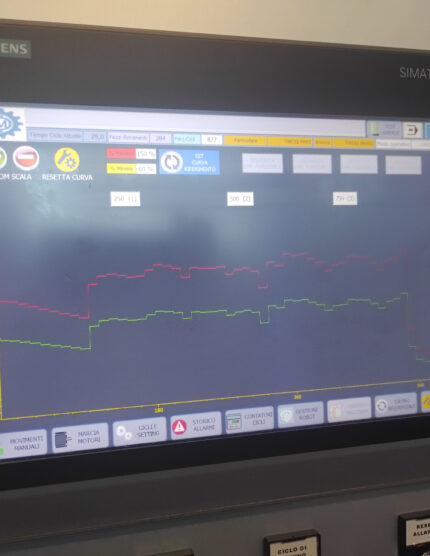

- REAL TIME CONTROL OF TOOL CUTTING PER KG
- QUALITY COMPONENTS
- WITHOUT NEED FOR A HOLE IN THE FLOOR
| Machine Type | POWER | STROKE | TABLE | STATIONS | BROACHING SPEED | RETURN SPEED |
| ECOVIM-I-4Q | 4 TON | 800…..1600mm | 320…500mm | 1….3 | 0,5……8Mt/min | 1…..24Mt/min |
| ECOVIM-I-4Q | 8 TON | 800…..1600mm | 320…500mm | 1….3 | 0,5……8Mt/min | 1…..24Mt/min |
| ECOVIM-I-4Q | 10 TON | 1000….1600mm | 320…500mm | 1….3 | 0,5……8Mt/min | 1…..24Mt/min |
| ECOVIM-I-4Q | 16 TON | 1250….2000mm | 400…500m | 1….3 | 0,5……8Mt/min | 1…..24Mt/min |
| ECOVIM-I-4Q | 25 TON | 1250….2500mm | 400…630mm | 1….3 | 0,5……6Mt/min | 1…..24Mt/min |
| ECOVIM-I-4Q | 40 TON | 2000….2500mm | 500…800mm | 1….3 | 0,5……6Mt/min | 1…..20Mt/min |
| ECOVIM-I-4Q | 63 TON | 2000….2750mm | 500…800mm | 1….3 | 0,5……6Mt/min | 1…..20Mt/min |
SPECIAL VERSION:
ECOVIM –I -4QS
- SPECIAL VERSION FOR BROACHING OF KEYS
- WITH LIFTING SYSTEM AND BROACH GUIDE
- WITHOUT HANGING SLEEVES.
- ALSO SUITABLE FOR INTEGRATION WITH AUTOMATION

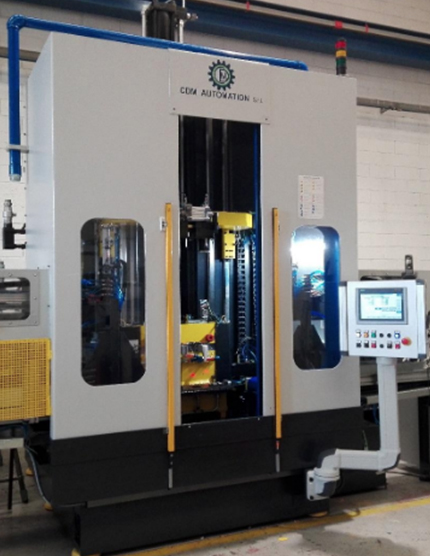

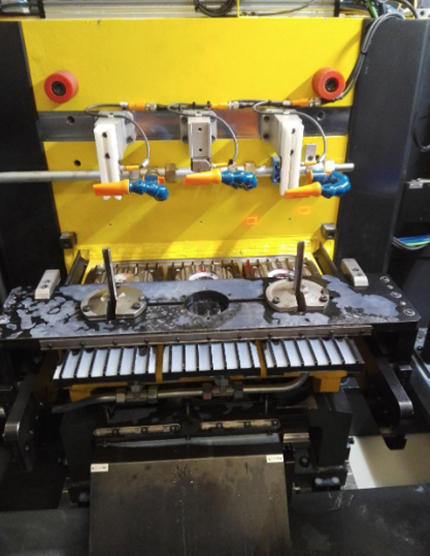

MODEL VIM-I 10-1250-500

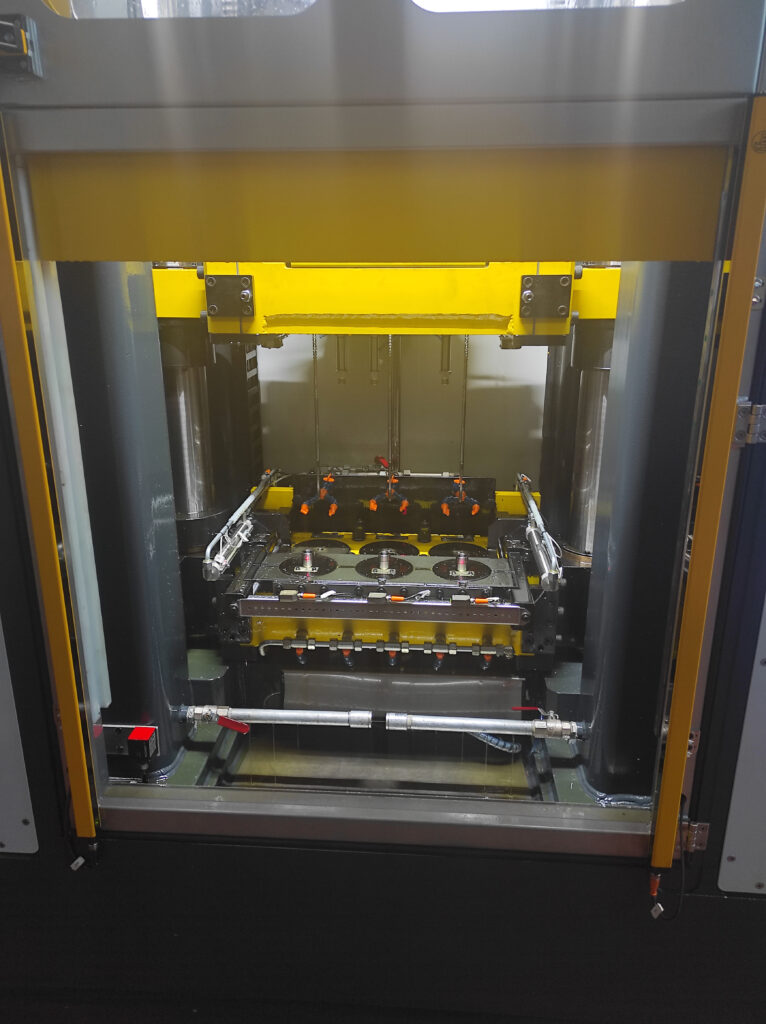

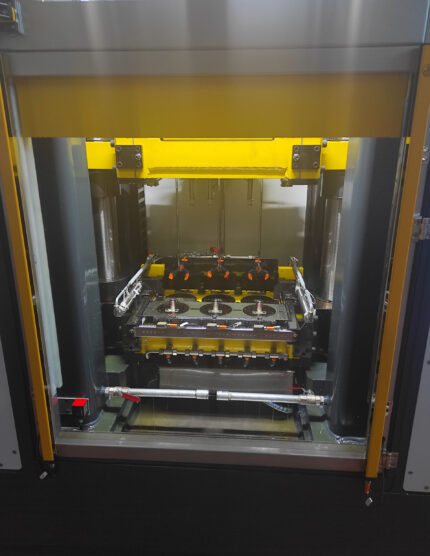

MOBILE TABLE VERTICAL BROACHING MACHINE
Type: Machine with hydraulic drive with inverter technology and positioning with absolute encoders. The inverter technology allows for an energy saving of 30% on an annual basis. The use of absolute encoders for positioning allows rapid retooling of the machine with automatic detection of the working quotas. The average time for the tool change is 20 / 25sec.
- CHARACTERISTICS: POWER 10TONS
- STROKE: 1250MM
- BROACHING SPEED: From 1 to 8 mt/min
- RETURN SPEED: From1 to20mt/min
- SIZE AND BUILD STROKES: POWER FROM 6 TO 25 TONS – STROKES FROM 1000 TO 2000mm

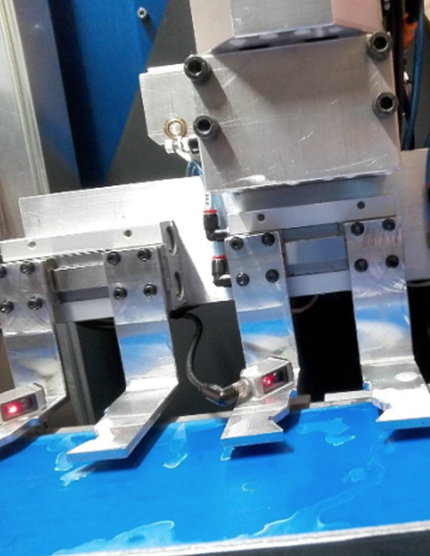

- ACCESSORIES: Example of machine automation for automatic positioning of the pieces.
- NOTES: MACHINE WITH TABLE AND EQUIPMENT FOR KEYS MAKING
