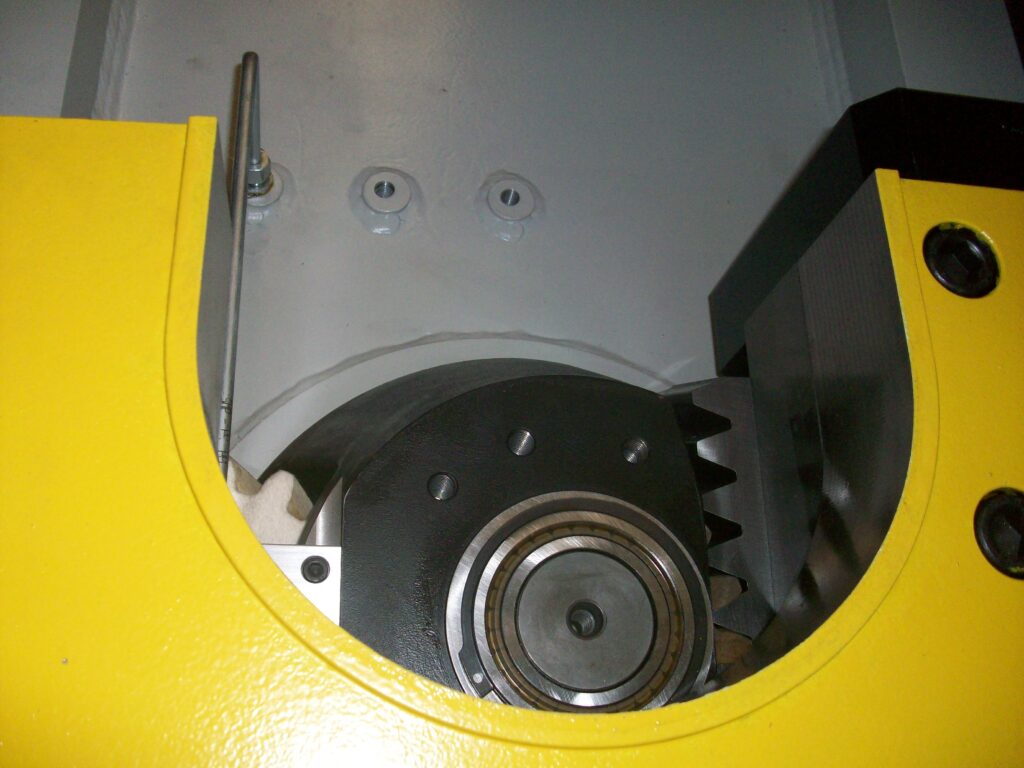

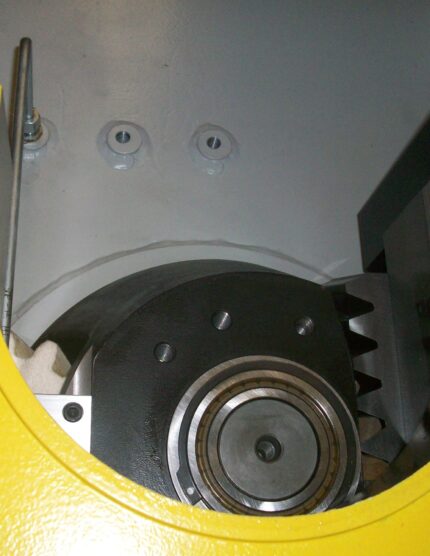

Transmission system with zero backlash pinion with keyed motor and reduced power, so as to accelerate the axis from 0 to maximum speed in less than 100mm. Reduced maintenance reducer and movement system with recirculating roller pads, for silent movement and reduced vibrations.

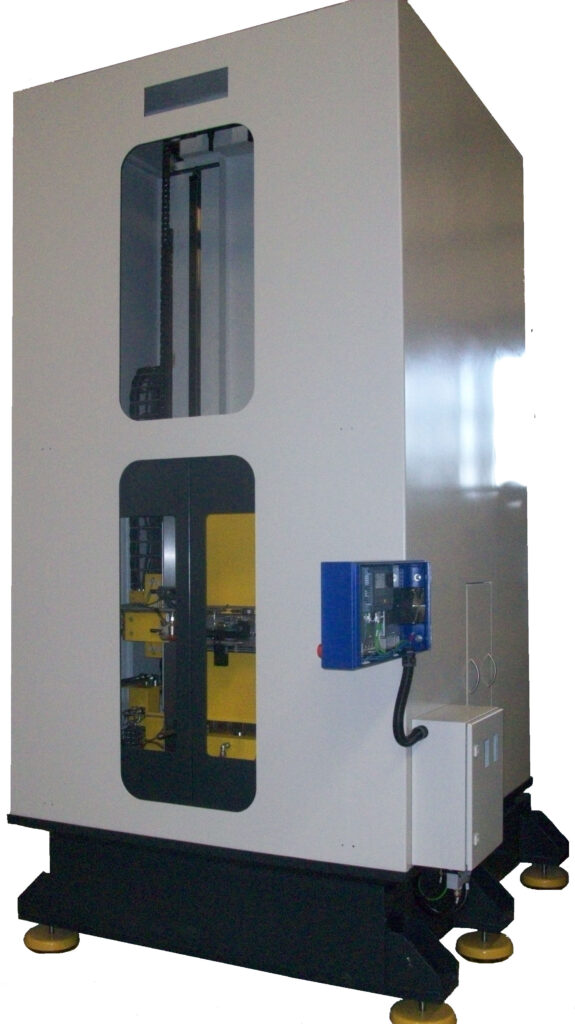

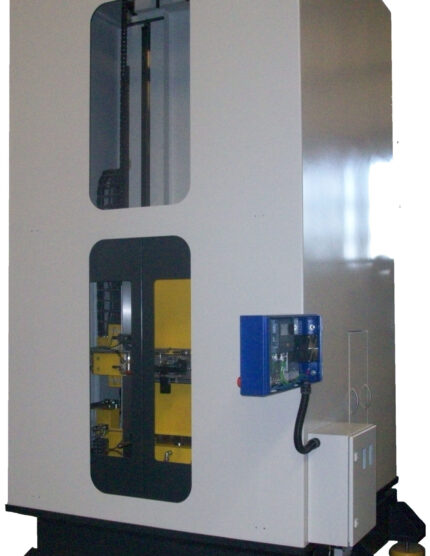

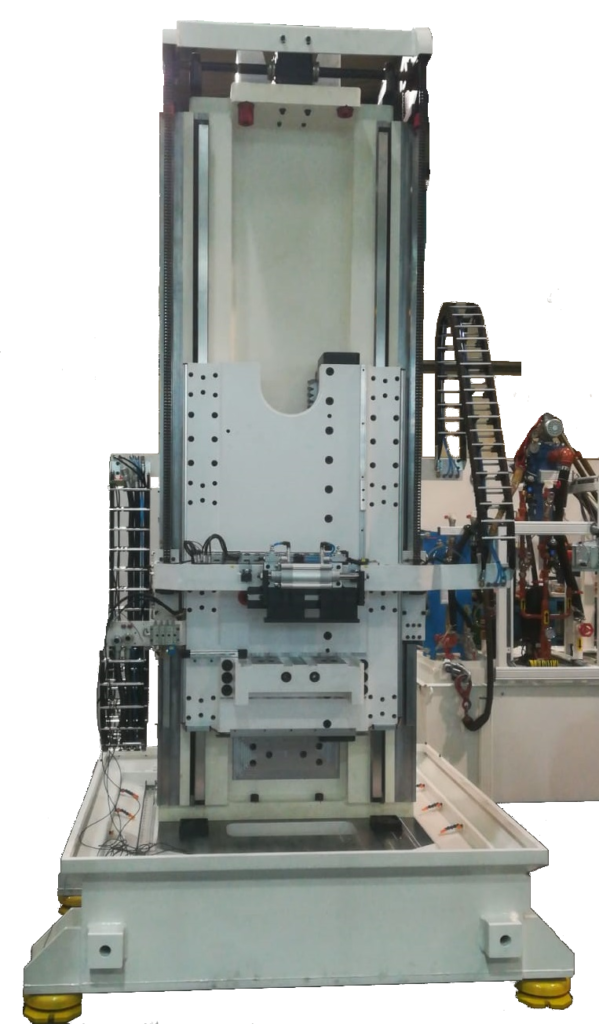

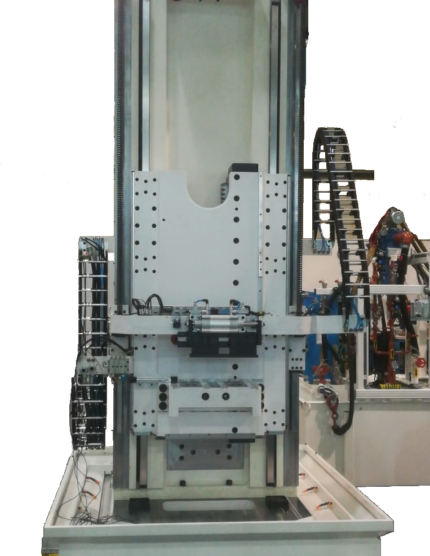

MODEL VIM – M – HB HARD
MACHINE ADVANTAGES:
- HIGH PRODUCTIVITY WITH REDUCED MAINTENANCE
- MACHINE EQUIPMENT SPEED AND AUTOMATIC BROACH CHANGE
- REAL TIME CONTROL OF TOOL CUTTING PER KG
- QUALITY COMPONENTS
- WITHOUT NEED FOR A HOLE IN THE FLOOR
| Machine Type | POWER | STROKE | TABLE | STATIONS | BROACHING SPEED | RETURN SPEED |
| VIM-M-HB | 7 TON | 1250…..1500mm | 500mm | 1….3 | 1……80Mt/min | 1…..50Mt/min |
| VIM-M-HB | 9 TON | 1250…..1500mm | 500mm | 1….3 | 1……80Mt/min | 1…..50Mt/min |
