The peculiarity of the machine lies in the innovative transmission and management system of the helical system that allows, without any mechanical recording, the change of the Helical parameters by modifying the desired value in dedicated piece tables. In view of the versatility of the machine, broaching operations can also be done without helical, allowing the use of the machine for straight broaching.

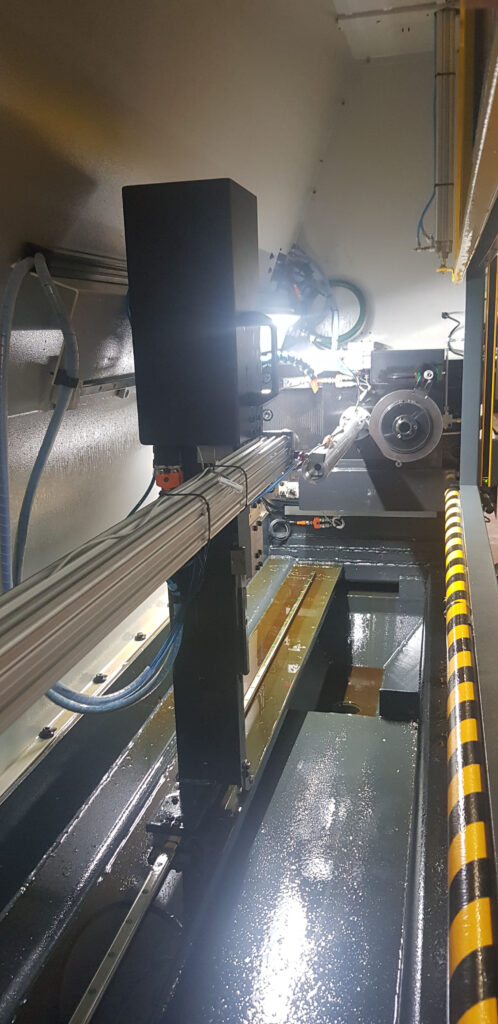

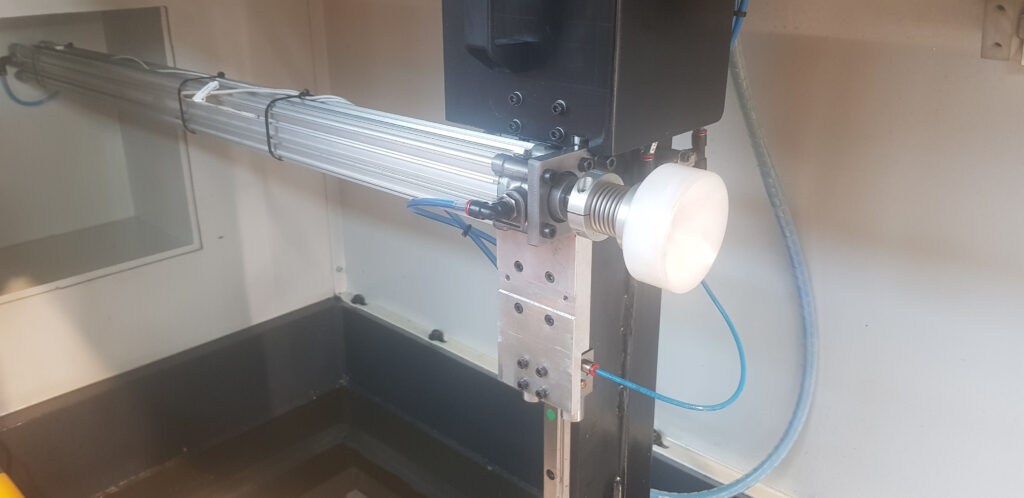

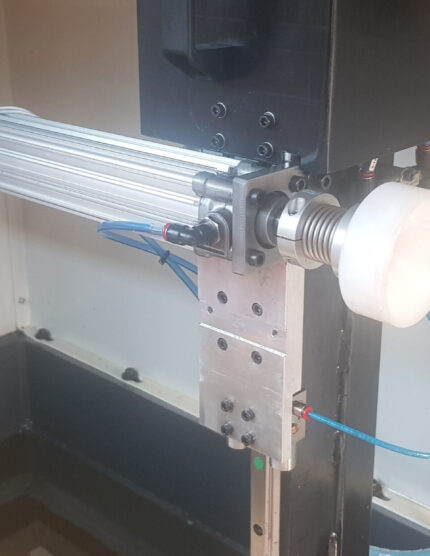

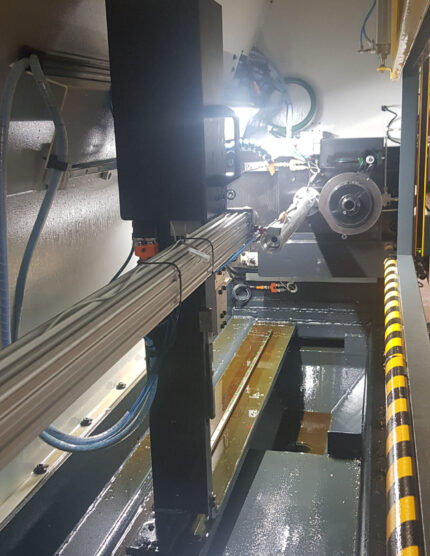

To also allow broaching in several passes with propeller orientation, the introduction of the tool in the work piece is manual, the operator must then insert the tool and then start the processing cycle, the concentricity of broach rotation is ensured by a broach guide system during the work phase.

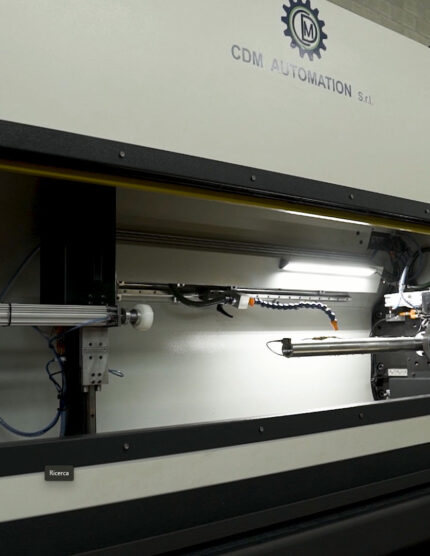

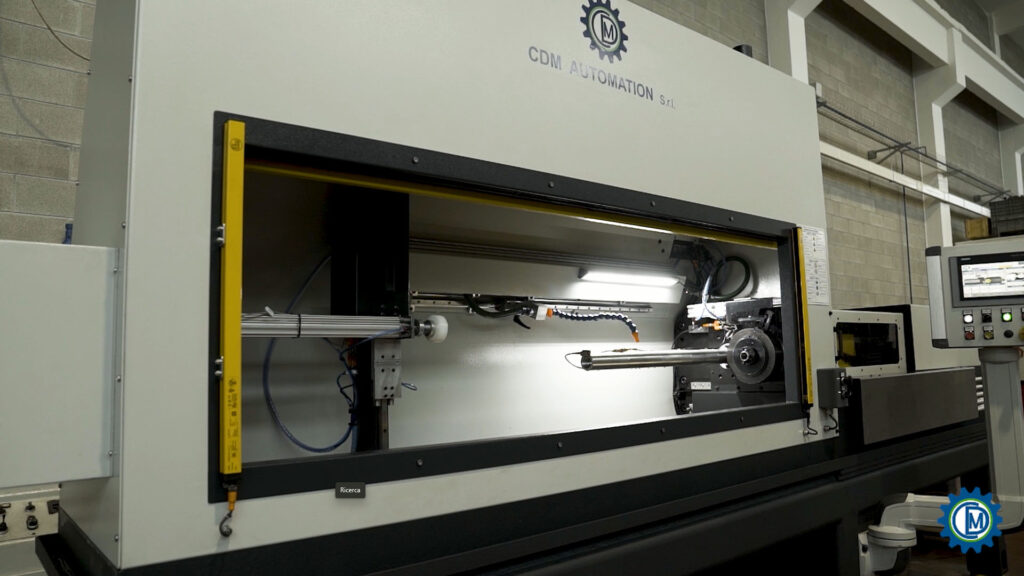

ORIZONTAL BROACHING MACHINE FIXED TABLE HELICAL BOELM
MACHINE ADVANTAGES:
- HIGH PRODUCTIVITY WITH REDUCED MAINTENANCE
- HIGH VERSABILITY MACHINE – STRAIGHT AND HELICAL BROACHING
- MACHINE EQUIPMENT SPEED AND AUTOMATIC BROACH CHANGE WITH BROACH TABLE
- REAL TIME CONTROL OF TOOL CUTTING PER KG
- QUALITY COMPONENTS
- WITHOUT NEED FOR A HOLE IN THE FLOOR
BOELM10 TON800…..2000mm500mm10,1……6Mt/min1…..15Mt/min
| Machine Type | POWER | STROKE | TABLE | STATIONS | BROACHING SPEED | RETURN SPEED |
| BOELM | 4 TON | 800…..1600mm | 400mm | 1 | 0,1……6Mt/min | 1…..15Mt/min |
| BOELM | 6 TON | 800…..2000mm | 500mm | 1 | 0,1……6Mt/min | 1…..15Mt/min |
